A new generation of intelligent security and intelligent fishery protection system based on multi-source information fusion.
Ray Shield Fisher Guardian System
Ray Shield Fishery Protection System
1. System Overview
Leidun Fishery Protection System – Sea Manager (hereinafter referred to as Leidun Fishery Protection) is an intelligent terminal software developed for applications in intelligent aquaculture (marine ranching).
It is the first event-centered business platform featuring:
- Target detection
- Linkage tracking
- Capture and evidence collection
- Intelligent early warning
- Event traceability
The external devices of the Ray Shield Fishery Protection System can connect to high-resolution security radars and mainstream PTZ opto-electronic devices, enabling seamless operation.
By integrating and analyzing detection information from multiple intelligent sensors—especially radars—the system achieves:
- Ultra-low false alarm rate
- Best-in-class intelligent classification
- All-weather performance
2. System Composition
The Ray Shield Fishery Protection System operates with a combination of supporting hardware and software components.
3. Hardware Environment
3.1 Hardware Equipment
| Component | Specification |
|---|---|
| Server configuration | |
| CPU | Intel® Core™ Processor |
| Hard Disk | 2TB |
| Graphics Card | NVIDIA GeForce |
| Memory | 32GB DDR5 |
| Operating System | Windows 10 Professional Edition |
| Monitor | |
| Resolution | 3840×2160 |
| Display Size | 27″ |
| Number of Screens | 2 |
3.2 Hardware Connection
System Architecture Diagram 3
3.3 Hardware Specifications
| Category | Details |
|---|---|
| Product Name | Ray Shield Fishery System |
| Model | LDS-002a |
| Shape | 2U rackmount case |
| Material | 6061 Aluminum Alloy |
| Installation | 4× Mounting brackets |
| Dimensions (L×W×H) | 482×450×89 mm |
| Weight | ≤ 10 kg |
| Power Input | 100–240 V AC 50/60 Hz |
| Power Supply | 550 W redundant, hot-swappable |
| Operating System | Windows 10 |
| Processor | Intel® Core™ Series |
| Storage | 2 TB SSD |
| Memory | 32 GB DDR5 |
| Network Interfaces | 1× Realtek 2.5 GbE, 1× 1 GbE |
| Wi-Fi | Wi-Fi 6E |
| Graphic Interfaces | 2× HDMI, 4× DisplayPort |
| USB Ports | 4× USB 2.0, 2× USB 5 Gbps, 1× USB 10 Gbps, 1× USB 20 Gbps (Type-C) |
| Audio | S/PDIF OUT + 5× Audio Jack |
| Display Units | 2 × 27″ 4K monitors |
| Input Devices | Wireless keyboard & mouse |
| Cooling | Industrial grade 6″ dual-bearing fans (6025 type) |
| Warranty | 3 years (main components), 1 year (accessories) |
| Accessories | Power cable, mounting brackets (cabinet/desk/wall), optional desk mount |
| Supported Devices | Radar (Wuhan Leikeda Technology Co., Ltd.) + Mainstream PTZ brands (Hikvision, Dahua, Hupu, Shenrong) |
| Optional Peripherals | Electronic badge, AIS receiver, hotspot collection unit |
4. Supporting Equipment
| Device Type | Description |
|---|---|

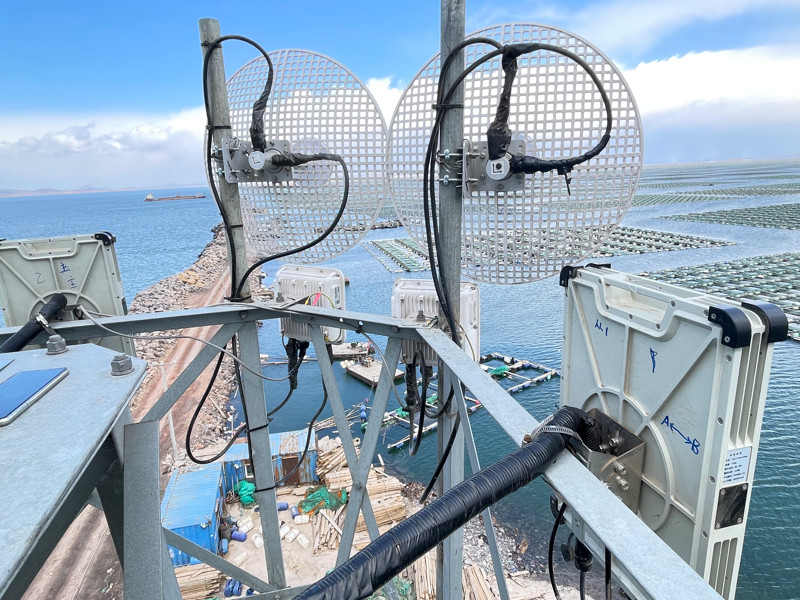

| Detector (Radar) | Installed at high points for real-time monitoring of all ships within coverage. Supports 360° low-altitude and ultra-low-altitude detection under all-weather conditions. |
| AIS Receiver | Mounted at high positions; displays all AIS-enabled ships with data such as position, heading, speed, name, and callsign. |
| Electronic Badge | Installed on internal vessels to identify friendly vs hostile targets; operates in conjunction with radar. |
| Hotspot Collection Equipment | Deployed at high points for 4G/5G mobile signal acquisition. Displays all hotspot targets within coverage. |
| Video / Optoelectronic Devices | Mounted at high positions for HD visual capture and infrared thermal imaging. Enables video tracking and linkage with radar detections. |
5. System Introduction
5.1 System Interface
5.2 System Features
| No. | Functional Category | Description |
|---|---|---|
| 1 | Target Detection | Automatic detection and acquisition of targets; motion trajectory mapping and threat-level judgment. |
| 2 | Intelligent Warning | Early warning of potentially dangerous or illegal navigation activities; supports instant video review and magnified playback; sends alarm sounds and alert messages to management. |
| 3 | Linkage Tracking | Real-time tracking of selected targets; automatic guidance of PTZ cameras for target tracking and image capture. |
| 4 | Evidence Capture | Automatic snapshot and video recording during linkage tracking for event evidence. |
| 5 | Event Trace | Playback of alert events with dynamic trajectory; records radar, video, snapshots, and alarms in real-time. |
| 6 | Map Switching | Toggle between satellite imagery and standard electronic nautical charts. |
| 7 | Unattended Operation | Automated warning and monitoring with unmanned operation. |
| 8 | Multi-Device Compatibility | Supports integration of multiple sensor types and expansion devices. |
5.3 Performance Indicators
| Parameter | Value |
|---|---|
| Maximum Radar Connections | 9 |
| Maximum Optical Devices | 9 |
| Maximum Electronic Badges | 200 |
| Supported Targets | 1,024 |
| Alarm Zones | 200 |
| Simultaneous Video Previews | 16 |
